Flexible Shield Power Chain Cable ECHU Cable

Name: Flexible Shield Power Chain Cable ECHU Cable
Brand: ECHU
Price: 0.513 USD

Flexible Shield Power Chain Cable ECHU Cable Manufactures

Brand Name : ECHU

Model Number : EKM71373, EKM71573

Certification : CE

Place of Origin : Shanghai, China

MOQ : 300M

Price : USD0.513-USD3.6/M

Payment Terms : Western Union, T/T, L/C

Supply Ability : 1000000M/Day

Delivery Time : within 10 days after receiving payment

Packaging Details : wooden reel/wooden box

Voltage : 300/500V; 450/750V

Insulation : Special PVC

Jacket : Special PVC

Contact Now

Super Flexible Power Chain Cable with Long Bending Life, Robot Cable
(EKM71100, EKM71573, EKM71900)
Application:
It is suitable for dry or wet rooms and installation without strong stress or free continuous reciprocating movement. It is special suitable for the working places of woodworking machine, machine tool equipment, logistics conveyer system, crane and other related equipments.
Properties:
Waterproofing; Oil resistance; Cool resistance; Abrasion resistance; Flame resistance; Anti-ultraviolet.
Bending for life: Above 5, 000, 000 times.
Structure:
Conductor: Fine strands of oxygen-free copper wire,
Acc. To VDE 0295 CLASS 6
Insulation: Special PVC
Sheath: Special PVC, black(RAL9005) or Grey (RAL7001)
Related voltage: >/= 300/500V, <0.5mm: 300/300V
Test voltage: 2500V
Temperature range: Fixed Installation: -30 degree to + 90 degree
Flexing Installation: -5 degree to +90 degree
The minimum bending radius: Fixed: 5xd
Moved: When travel<10m, bending radius of 7.5xd
When travel>/=10m. Bending radius of 10xd

Type	Specification	Conductor (Number/Dia)

EKM71373	O.1*2C	13/0.1CU+2/0.1steel
EKM71373	O.1*3C	13/0.1CU+2/0.1steel
EKM71373	O.1*4C	13/0.1CU+2/0.1steel
EKM71373	O.1*5C	13/0.1CU+2/0.1steel
EKM71373	O.1*6C	13/0.1CU+2/0.1steel
EKM71373	O.1*7C	13/0.1CU+2/0.1steel
EKM71373	O.1*8C	13/0.1CU+2/0.1steel
EKM71373	O.1*9C	13/0.1CU+2/0.1steel
EKM71373	O.1*1OC	13/0.1CU+2/0.1steel
EKM71373	O.1*11C	13/0.1CU+2/0.1steel
EKM71373	O.1*12C	13/0.1CU+2/0.1steel
EKM71373	O.1*13C	13/0.1CU+2/0.1steel
EKM71373	O.1*14C	13/0.1CU+2/0.1steel
EKM71373	O.1*15C	13/0.1CU+2/0.1steel
EKM71373	O.1*16C	13/0.1CU+2/0.1steel
EKM71373	O.1*17C	13/0.1CU+2/0.1steel
EKM71373	O.1*18C	13/0.1CU+2/0.1steel
EKM71373	O.1*19C	13/0.1CU+2/0.1steel
EKM71373	O.1*2OC	13/0.1CU+2/0.1steel
EKM71373	O.1*21C	13/0.1CU+2/0.1steel
EKM71373	O.1*22C	13/0.1CU+2/0.1steel
EKM71373	O.1*23C	13/0.1CU+2/0.1steel
EKM71373	O.1*24C	13/0.1CU+2/0.1steel
EKM71373	O.1*25C	13/0.1CU+2/0.1steel
EKM71373	O.1*26C	13/0.1CU+2/0.1steel
EKM71373	O.1*27C	13/0.1CU+2/0.1steel
EKM71373	O.1*28C	13/0.1CU+2/0.1steel
EKM71373	O.1*29C	13/0.1CU+2/0.1steel
EKM71373	O.1*3OC	13/0.1CU+2/0.1steel

EKM71373	O.14*2C	18/0.1CU+2/0.1steel
EKM71373	O.14*3C	18/0.1CU+2/0.1steel
EKM71373	O.14*4C	18/0.1CU+2/0.1steel
EKM71373	O.14*5C	18/0.1CU+2/0.1steel
EKM71373	O.14*6C	18/0.1CU+2/0.1steel
EKM71373	O.14*7C	18/0.1CU+2/0.1steel
EKM71373	O.14*8C	18/0.1CU+2/0.1steel
EKM71373	O.14*9C	18/0.1CU+2/0.1steel
EKM71373	O.14*1OC	18/0.1CU+2/0.1steel
EKM71373	O.14*11C	18/0.1CU+2/0.1steel
EKM71373	O.14*12C	18/0.1CU+2/0.1steel
EKM71373	O.14*13C	18/0.1CU+2/0.1steel
EKM71373	O.14*14C	18/0.1CU+2/0.1steel
EKM71373	O.14*15C	18/0.1CU+2/0.1steel
EKM71373	O.14*16C	18/0.1CU+2/0.1steel
EKM71373	O.14*17C	18/0.1CU+2/0.1steel
EKM71373	O.14*18C	18/0.1CU+2/0.1steel
EKM71373	O.14*19C	18/0.1CU+2/0.1steel
EKM71373	O.14*2OC	18/0.1CU+2/0.1steel
EKM71373	O.14*21C	18/0.1CU+2/0.1steel
EKM71373	O.14*22C	18/0.1CU+2/0.1steel
EKM71373	O.14*23C	18/0.1CU+2/0.1steel
EKM71373	O.14*24C	18/0.1CU+2/0.1steel
EKM71373	O.14*25C	18/0.1CU+2/0.1steel
EKM71373	O.14*26C	18/0.1CU+2/0.1steel
EKM71373	O.14*27C	18/0.1CU+2/0.1steel
EKM71373	O.14*28C	18/0.1CU+2/0.1steel
EKM71373	O.14*29C	18/0.1CU+2/0.1steel
EKM71373	O.14*3OC	18/0.1CU+2/0.1steel

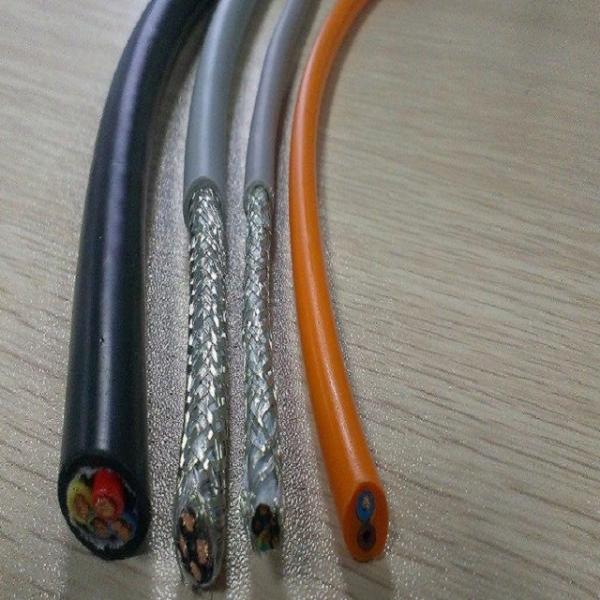

Flexible Shield Power Chain Cable ECHU Cable Images
